boogoo619/dsh-noteboard

Screenshots 📸

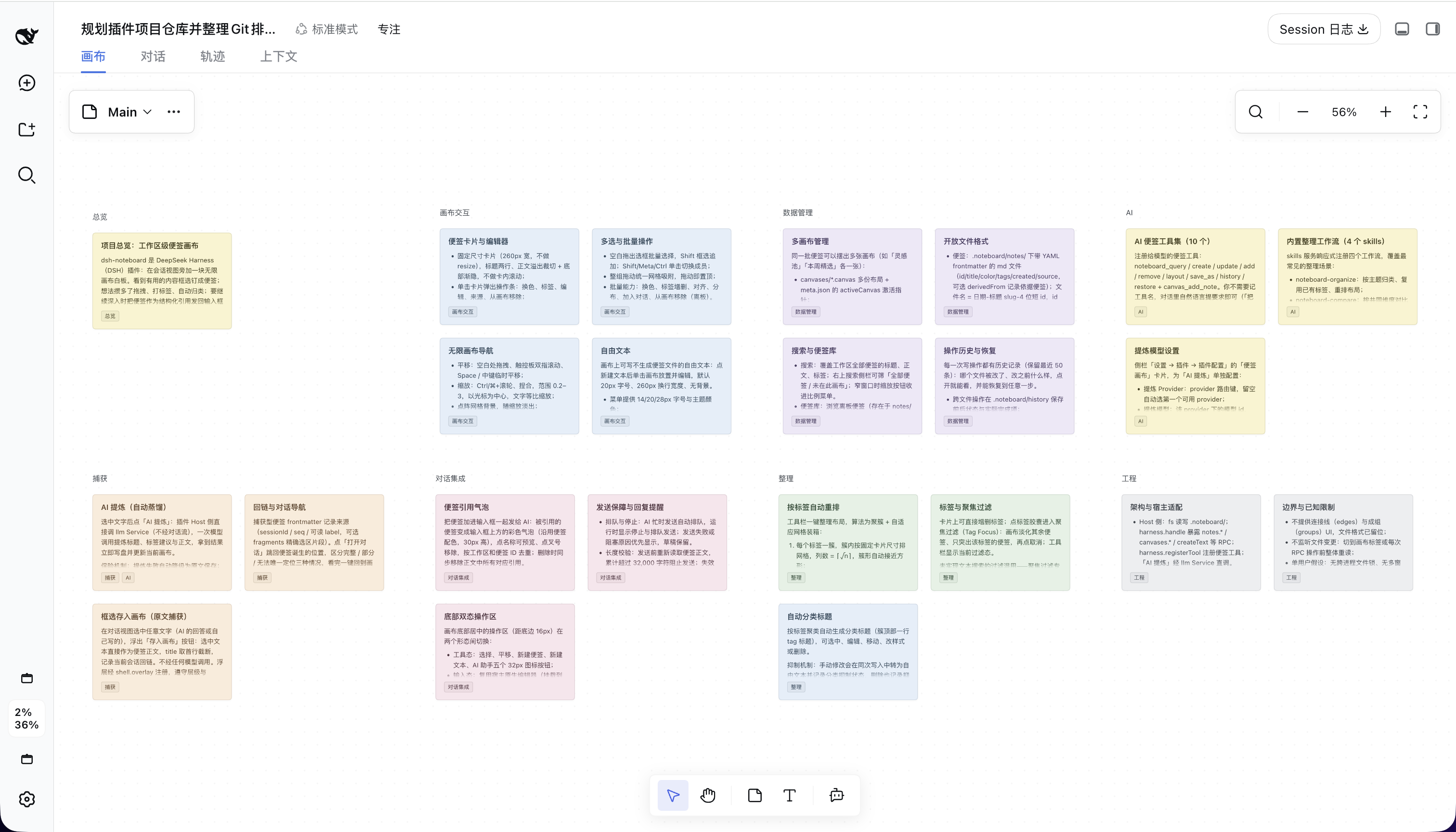

Canvas overview

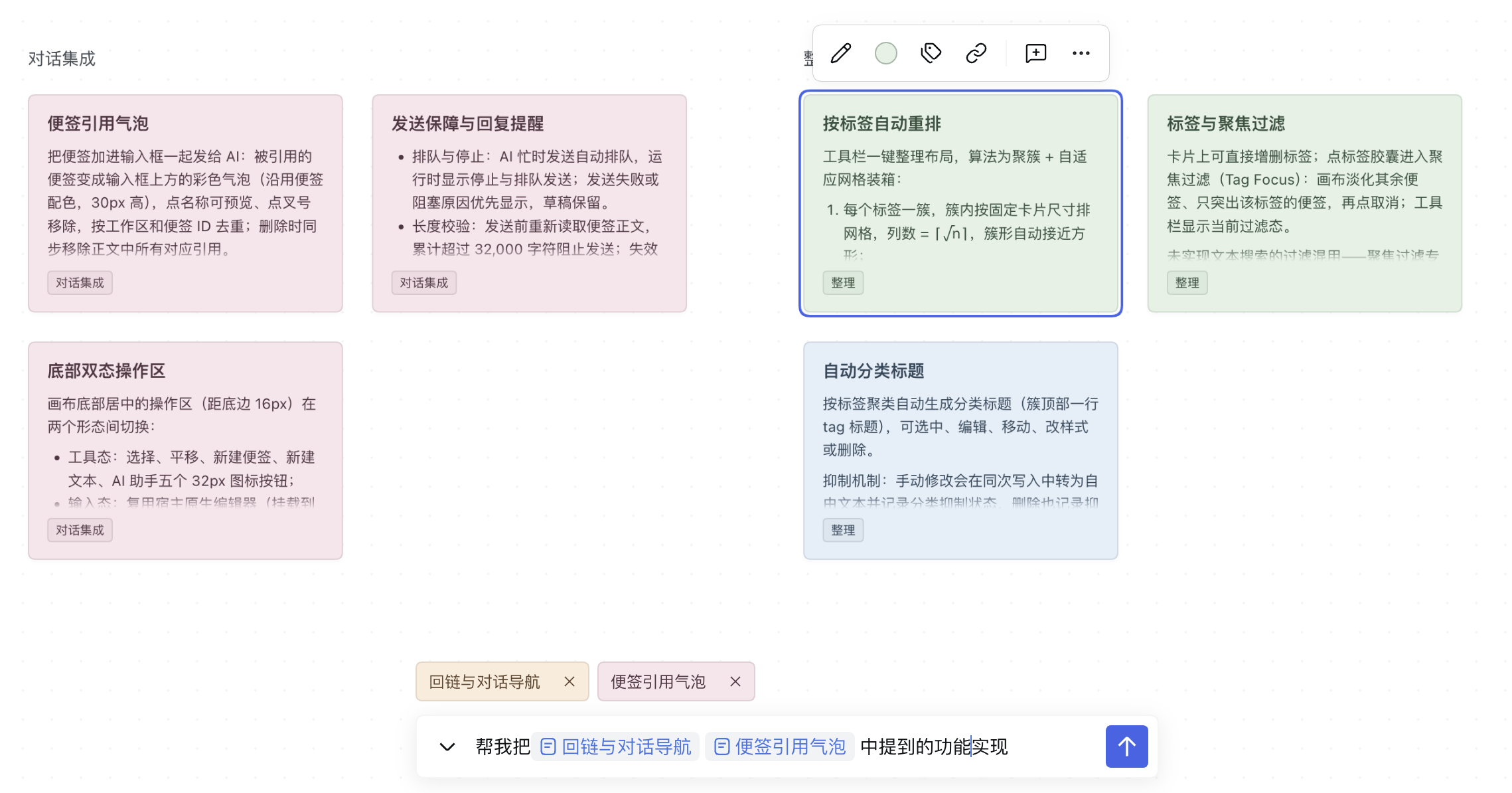

Citing notes into the composer

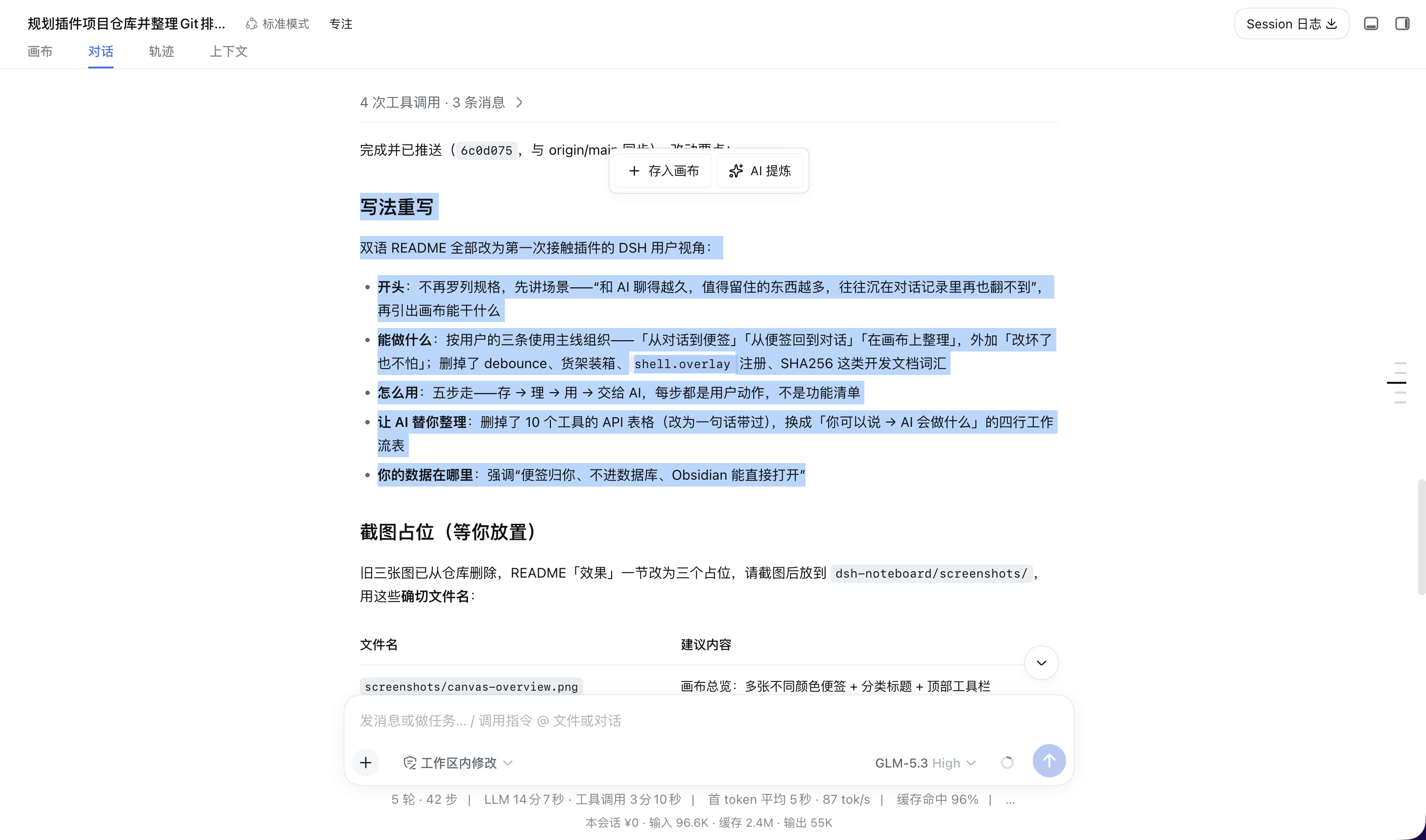

Capturing a note from a conversation

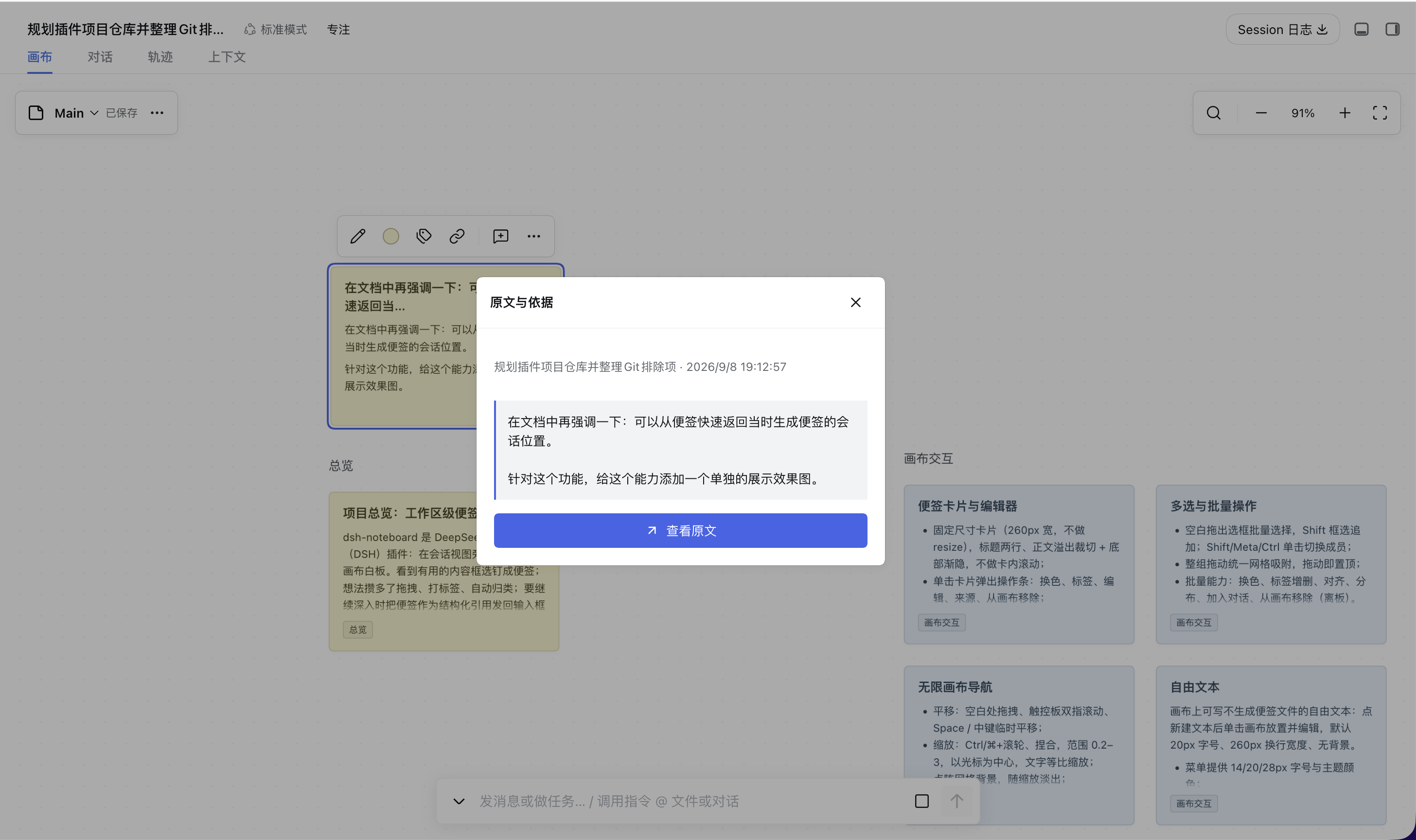

Jumping from a note back to its source

Features ✨

• Infinite canvas — pan, zoom, marquee group-move, grid snapping, plus free text and tag-clustered headings; the same notes can live on multiple canvas layouts, switchable anytime
• Markdown notes — each note is a .md file with frontmatter; live-preview editor, seven colors, light and dark themes
• Capture from conversations — select text to "save to canvas" verbatim or "AI distill" it into a note
• Source backlinks — every captured note remembers which session and passage it came from; "open conversation" jumps straight to the highlighted origin, and one click returns to the canvas
• Send back to the AI — notes join the composer as citation bubbles and go out as structured citations; sending is blocked beyond 32,000 cumulative characters
• Organizing — tag-pill focus filter, auto-rearrange by tag (backed up, restorable), search across titles / bodies / tags, off-board note library
• AI tools — 12 tools and 5 bundled workflows support reading conversation ranges, extracting, querying, modifying, organizing, and synthesizing notes (tables below)
• History & restore — every write shows a before/after diff and is restorable; conflicting restores are refused

AI Tools & Workflows 🤖

12 model tools registered with the plugin:

Tool	Description
canvas_add_note	Create a note and place it on a canvas; optionally record derivedFrom provenance
noteboard_query	Search workspace notes, or read full content, versions, and sources by ids
noteboard_create	Batch-create up to 200 notes with shared or per-note sources and optional exact deduplication
noteboard_sessions	Find source sessions in the current workspace by title or ID, with paginated metadata
noteboard_read_session	Read current or specified conversation text by sequence, time, and role, including long-message continuation
noteboard_update	Modify notes with read-time versions; batch by color for classification. Content and color edits affect every canvas
noteboard_add	Place existing notes onto a canvas without copying files
noteboard_remove	Remove notes from a canvas only; files are kept
noteboard_layout	Group by tag, arrange in explicit ID order, align, or distribute notes (must carry the canvas version)
noteboard_save_as	Save the canvas layout under a new name
noteboard_history	List operations; inspect before/after file content
noteboard_restore	Restore an operation, refusing to overwrite later changes

Plus 5 bundled workflows (skills):

Workflow	Description
noteboard-extract	Filter conversations, selected ranges, files, or referenced material into notes with source metadata
noteboard-organize	Group and tag notes, color by content, or arrange by version, time, or priority
noteboard-compare	Compare plans captured in notes; weigh trade-offs and spot disagreements
noteboard-actions	Break ideas in notes down into action items or implementation steps
noteboard-synthesize	Merge duplicate notes, deduplicate, or synthesize conclusions

Regular operations use the session model; the "AI distill" model is configured separately in plugin settings.

For example: "Color these release notes by the kind of change, then arrange them in ascending version order, four per row." The model reads the notes, chooses the color mapping and version order, updates notes in color groups, reads the latest canvas version, then calls noteboard_layout with action: "ordered", sorted ids, and columns: 4. The tool preserves that order from left to right, row by row, keeps tags and dimensions, and avoids unselected canvas objects. Use columns: 1 for a vertical timeline; omit it for a roughly square grid. The model determines version order; the layout tool does not parse versions. rearrange continues to group by the first tag. Layout operations can be restored through history.

Extract Notes by Criteria

For example: "Save confirmed product decisions from this conversation as notes, excluding tentative proposals," or "Extract unresolved questions from this afternoon in the specified conversation, one per note; show a preview first." noteboard-extract follows the requested scope and format. Preview requests produce drafts only; save requests check existing notes before creating new ones.

• noteboard_sessions searches session titles and IDs within the current workspace. A source in another workspace requires a user-specified session ID; created notes still belong to the executing session's workspace.
• noteboard_read_session defaults to the current session. fromSeq/toSeq are inclusive event sequences, not conversation turn numbers; fromTime/toTime are inclusive Unix milliseconds. roles selects user, assistant, or both.
• The tool reads original conversation text, including pre-compaction messages. It excludes reasoning, tool output, and injected context, and does not parse images or attachments. nonTextBlocks indicates non-text material in the selected range.
• Pages default to 40 messages and 12,000 characters. Pass the entire next object into the next call until complete: true. Continuations retain the initial capture boundary; later messages require a new read. Long messages expose start/end offsets so their text can be joined by seq.
• The existing source field stores conversation sessionId/seq/label/text, file path/startLine/endLine/label/text, or web url/label/text. Batch sources provide defaults that individual notes may override. Cite multiple sources in the body and record the primary source in source. Existing conversation navigation remains available; file and web references are stored as metadata.
• Optional deduplicate: true skips notes with matching titles and bodies, ignoring surrounding whitespace, within the target canvas and the current batch. skipped reports input indices and existing IDs without modifying those notes. It defaults to false. The workflow handles semantic duplicates by reading existing content and checks persisted results before retrying.

Historical discovery and reads use the host's sessionQuery service; the current conversation can be read directly from the executing Session. Missing services produce explicit errors. File and web content use existing host read tools.

Install 📦

Requires the dsh CLI (>= 0.1.2-rc.1) and Node >= 22.19.0.

From npm (recommended)

dsh plugin --profile web add dsh-noteboard
dsh web

The npm package ships prebuilt artifacts — no build scripts run on your machine and no pnpm build authorization is needed.

If add doesn't pick up the latest version: that's pnpm's minimumReleaseAge safety mechanism — for 24 hours by default, freshly published versions aren't resolved as latest and fall back to the previous stable one. To get the newest release immediately, pin the version:

dsh plugin --profile web add dsh-noteboard@<version>

From GitHub source

dsh plugin --profile web add github:boogoo619/dsh-noteboard
dsh web

Installing from git pulls the source and builds it on the spot via the prepare script. pnpm ≥10 refuses to run prepare at first; after the initial add fails, copy the package key into that profile's pnpm-workspace.yaml as dsh suggests:

allowBuilds:
  dsh-noteboard: true

Then run add again. This authorization lets this package's code execute on your machine at install time — only grant it to trusted sources and pin a commit (github:boogoo619/dsh-noteboard#<sha>).

For local development, link it:

dsh plugin --profile web add link:/absolute/path/to/dsh-noteboard

Restart dsh web after installing.

Data Format 🗂️

<workspace>/.noteboard/
├── meta.json                      # { "activeCanvas": "Main" }
├── canvases/<name>.canvas         # JSON Canvas 1.0 layout (Obsidian Canvas compatible)
├── notes/<date>-<title>-<shortid>.md  # the note itself: Markdown + YAML frontmatter
└── history/                       # operation history

• Note frontmatter: id, title, color, tags, created, source (backlink), derivedFrom (provenance); unrecognized fields are always preserved
• A canvas file only describes the layout: node ids foreign-key note ids, and text uses Obsidian-style relative references; other JSON Canvas tools can open it directly
• Content versions are SHA256; writes go through a queue with conflict checks

Settings ⚙️

Under "Settings → Plugins", expand the initially collapsed Noteboard entry. Preferences are saved by the host and apply across workspaces; viewport positions remain separate for each workspace and canvas.

Option	Description
Selection capture toolbar	On by default; disable the capture actions shown after selecting conversation text
After capture	Stay in conversation (default) or open the note; never jump automatically after switching sessions
Default note color	Seven colors, yellow by default; affects new notes only, explicit colors take precedence
Background grid / snap while dragging	Both on by default, independently controlled; shared 24-unit spacing without moving existing content
Plain mouse wheel	Pan (default) or zoom; Ctrl / Command + wheel and pinch always zoom
Opening view	Restore the last view (default) or fit all; explicit note navigation takes priority
Distill provider / model	Automatically choose the first provider with models and its first model; show the resolved selection and report unavailable explicit selections
Distill length	Short (~100), standard (~200, default), detailed (~400); Chinese characters or English words, without truncating the generated body
Output language	Chinese (default), English, or match the source
Additional requirements	Advanced content and style instructions, empty by default; the plugin owns the title, tags, and Markdown body output contract
History retention	Latest 50 (default), 100, or 200 operations per workspace; reductions take effect after its next successful write, preserving note/canvas files and pending operations

Each group can be reset. Switches and selections save immediately; text saves after 400ms idle or on blur. Failed edits remain available for retry. "Test distill" calls the model with saved preferences and submitted sample text without creating notes or history. These model settings only affect AI distill; conversations and note tools use the conversation model.

The old prompt setting is no longer consumed; use additional requirements instead. Restart Harness after updating the host plugin; refreshing the browser alone does not reload backend code.

Development 🛠️

pnpm install
npm test            # vitest: unit / API tests
npx tsc --noEmit    # type check
npm run build       # tsdown build: host service + client bundle → lib/

With Harness installed, run node test/host-extraction.mjs /path/to/installed/dsh to check tool registration, conversation reads, source persistence, duplicate retries, and restore against the host's actual schema validator and Session class. The script uses a temporary workspace and removes its test notes afterward.

test/browser-*.mjs are browser end-to-end scripts that need real Harness instances running locally (ports 3081–3083 by default), with auth state and logs under /tmp; screenshots go to artifacts/ (gitignored). Client changes take effect on refresh after a build; host-side changes need an instance restart.

Cross-Platform Paths 🌐

Workspace roots may be macOS/Linux /path/to/ws, Windows C:\path\to\ws, C:/path/to/ws, or UNC \\server\share\ws. The conventions:

• Path-form reasoning (absolute-ness, separators, casing) may only happen in src/workspace-root.mjs; every other module receives an already-canonical root (test/path-hygiene.test.mjs enforces this with a static scan);
• Canonical form = resolve + lower-cased Windows drive letter, mapped through realpath when the directory exists to remove symlinks and drive-letter case variants (UNC server-name casing is left as-is); the value realpath returns goes through that same drive-letter rule, which makes the canonical form a fixed point of the write-queue key, so one workspace keeps exactly one write queue and one operation journal;
• Symlinks and Windows 8.3 short names can only be resolved once the directory exists, so a canonical root may upgrade to its resolved form after that directory is first created; callers must not cache a root identity across that moment;
• Operation-journal file keys (.noteboard/history/) are forward-slashed workspace-relative paths on every platform;
• CI runs the same suite on macOS / Ubuntu / Windows (.github/workflows/ci.yml).

Boundaries & Known Limitations ⚠️

• No UI for edges or groups yet; the file format already reserves them
• No file watching: the canvas re-reads everything on tab activation and before each RPC operation
• Single-user assumption: no cross-process file locking, no realtime collaboration
• The bottom action bar adapts to host DOM markers and injection APIs; re-verify after host upgrades rather than trusting version numbers
• No full in-canvas chat, rich text, or general undo/redo
