IcedWatermelonJuice/dsh-provider-veark

Install · Configuration · Uninstall · Endpoints & Billing · Known Limitations · Development

---

Install

The commands below use the web profile as an example (replace it with your own profile name, e.g. headless). Pick any one of the three ways, then restart DSH.

First install fails with ERR_PNPM_IGNORED_BUILDS? pnpm 11+ blocks dependency build scripts by default (involving protobufjs). Allow the build once, then re-run the install command:

dsh plugin --profile web approve-builds protobufjs

After approving, re-run the install command below. You only need to do this once.

Option 1: npm registry (recommended)

dsh plugin --profile web add @icedcola/dsh-provider-veark

Option 2: GitHub source

dsh plugin --profile web add github:IcedWatermelonJuice/dsh-provider-veark

Option 3: local link (development)

dsh plugin --profile web add /path_to_dsh-provider-veark

A local install is a link-style install: it references the source directory directly, so code changes take effect immediately; do not delete or move that directory while installed, or bundle resolution breaks.

Configuration

1. Open the DSH web UI → Settings → Plugins → "火山方舟 Coding Plan", expand the card.
2. Paste your API key (Volcengine Ark API key) → Save. The key is stored in the DSH credentials service; it is never echoed back or written to settings.yaml.
3. Done. "火山方舟 Coding Plan" now appears in model selection (default ark-code-latest); text, image, and PDF document understanding are ready.

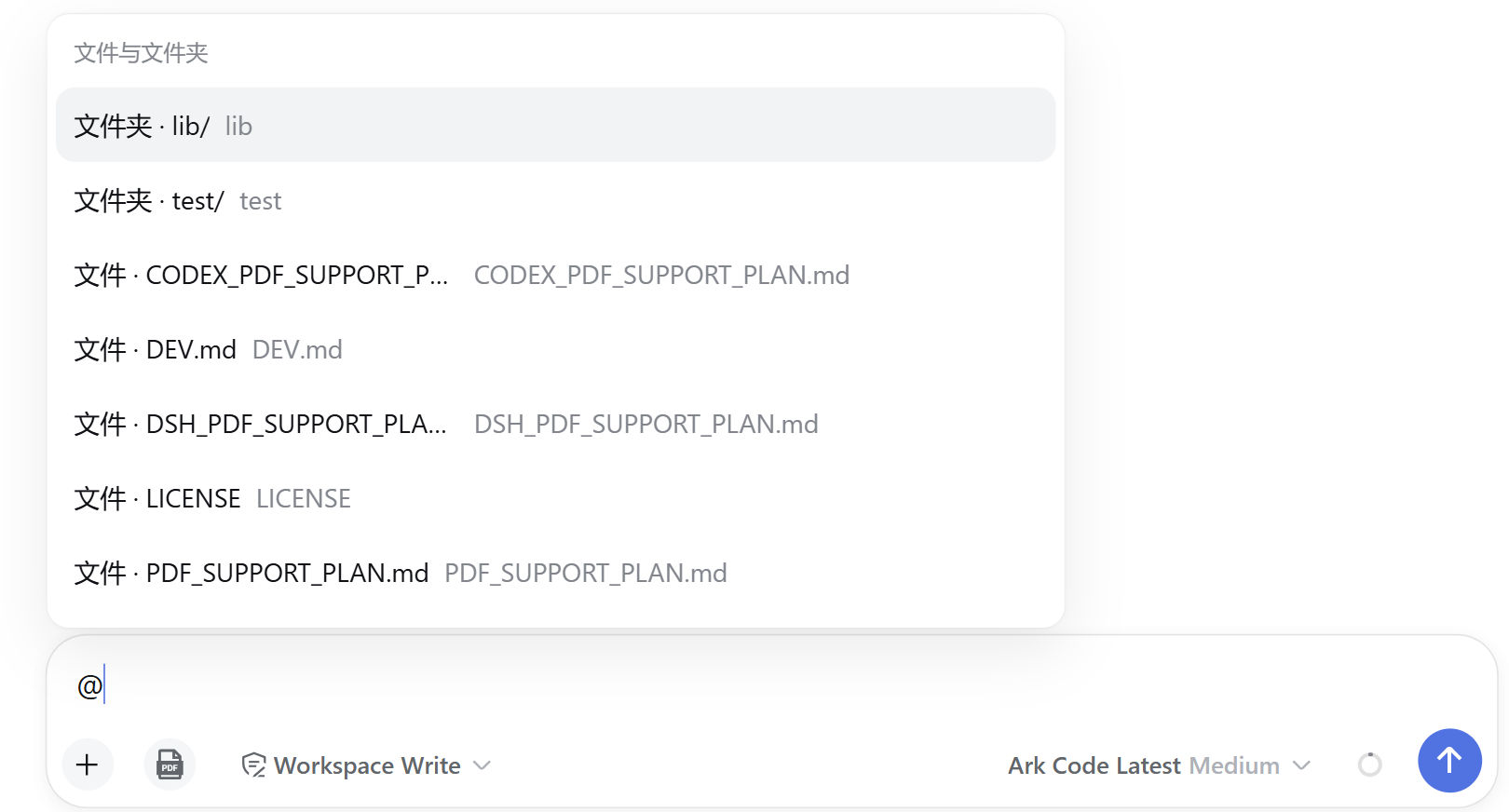

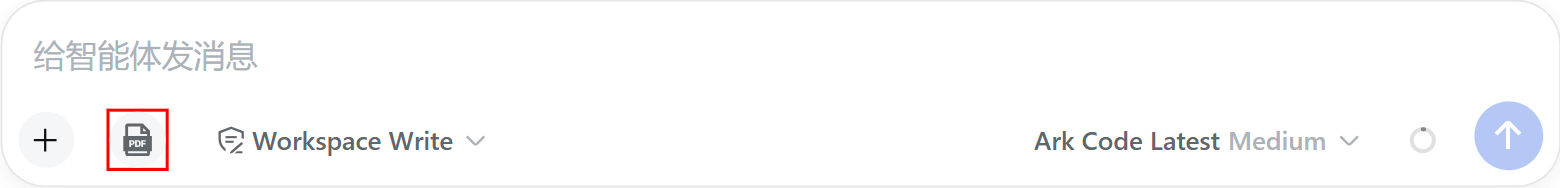

To use a PDF, select a model that declares the pdf input capability (the default ark-code-latest does). Reference a workspace document directly as @docs/file.pdf, or use @"docs/my paper.pdf" for spaces. For a document outside the workspace, click PDF beside the Composer; the plugin stages an immutable snapshot immediately and appends @.dsh-pdf/<uuid>/<filename> to the draft. /pdf remains only as a migration hint. The button is visible only for this plugin's volcengine provider when the selected model declares pdf. Custom models default to text; enable pdf only when their actual endpoint supports document understanding.

The card also offers collapsible sections for cloud image handling, endpoints, image limits, local PDF retention, retries, and the model list. Leave any field empty to restore its default.

These can also be set by editing the dsh-provider-veark: section of %DSH_HOME%\settings.yaml (hot-reloads on save; the whole section may be omitted = all defaults):

dsh-provider-veark:
  preferFiles: true
  chatBaseURL: https://ark.cn-beijing.volces.com/api/coding/v3   # coding gateway, do not change
  filesBaseURL: https://ark.cn-beijing.volces.com/api/v3         # switch to …/api/coding/v3 when standard domain returns 403
  apiKeyEnv: ARK_API_KEY
  # models:
  #   - id: ark-code-latest
  #     name: Ark Code Latest
  #     contextWindow: 1000000
  #     maxTokens: 128000
  #     inputModalities: ["text", "image", "pdf"]
  #     imagePixelBudget: 640000
  #     imageMaxBytes: 1048576
  # requestImagePixelBudget: 640000
  # requestImageMaxBytes: 1048576
  # fileExpirySeconds: 604800
  # filesApiTimeoutMs: 15000
  # filesProbeIntervalMs: 21600000
  # pdfRetentionDays: 0       # 0 = keep indefinitely; 1–3650 = clean old sidecars on a later upload

Alternatively, skip the card entirely and set the ARK_API_KEY environment variable before starting DSH (or a custom reference name via apiKeyEnv).

Uninstall

dsh plugin --profile web remove @icedcola/dsh-provider-veark

Then restart DSH. The plugin does not modify Harness source files. You may also delete %DSH_HOME%\dsh-provider-veark\ (image state) and %DSH_HOME%\provider-veark\ (PDF sidecars). Removing sidecars makes historical PDF tokens unreadable.

Endpoints & Billing

Request	URL	Billing
Chat	…/api/coding/v3/responses	Coding Plan subscription
File upload/delete	…/api/v3/files (default)	Storage API, no model tokens
PDF understanding	Base64 input_file inside the chat request	Coding Plan; no Files API or TOS

Field-tested (2026-08, coding key): the coding gateway /api/coding/v3/files is not available; the standard domain /api/v3/files works. It looks like Volcengine may migrate file storage for coding plans over to the standard domain later. The default (standard domain) already works — no configuration needed.

Known Limitations

• Each PDF and the cumulative raw PDF data in one request are capped at 45 MiB, leaving overhead below Ark's 50 MB per-file and 64 MB whole-request limits.
• PDF-button sidecars live under %DSH_HOME%\provider-veark\pdfs\. Used snapshots are kept indefinitely by default; unused staged pairs and incomplete orphans are removed after a 24-hour grace period. pdfRetentionDays enables optional cleanup of used snapshots, after which old sessions cannot reopen them.
• Plain @path.pdf references can read only relative paths contained by the current session workspace. Absolute and escaping paths remain ordinary text. Workspace references read the file's current contents on each request; PDF-button sidecars are immutable selection-time snapshots.
• Session JSONL export alone does not include sidecars; migrate that directory as well for cross-machine restoration.
• Assistant reasoning blocks are not replayed in history (Responses protocol limitation).
• Video, audio, and TOS direct upload are not supported.

Development

Architecture, tests, publishing and the rollback manual live in DEV.md.

pnpm install
pnpm test

License

MIT
