xyAxzy/dsh-conversation-map

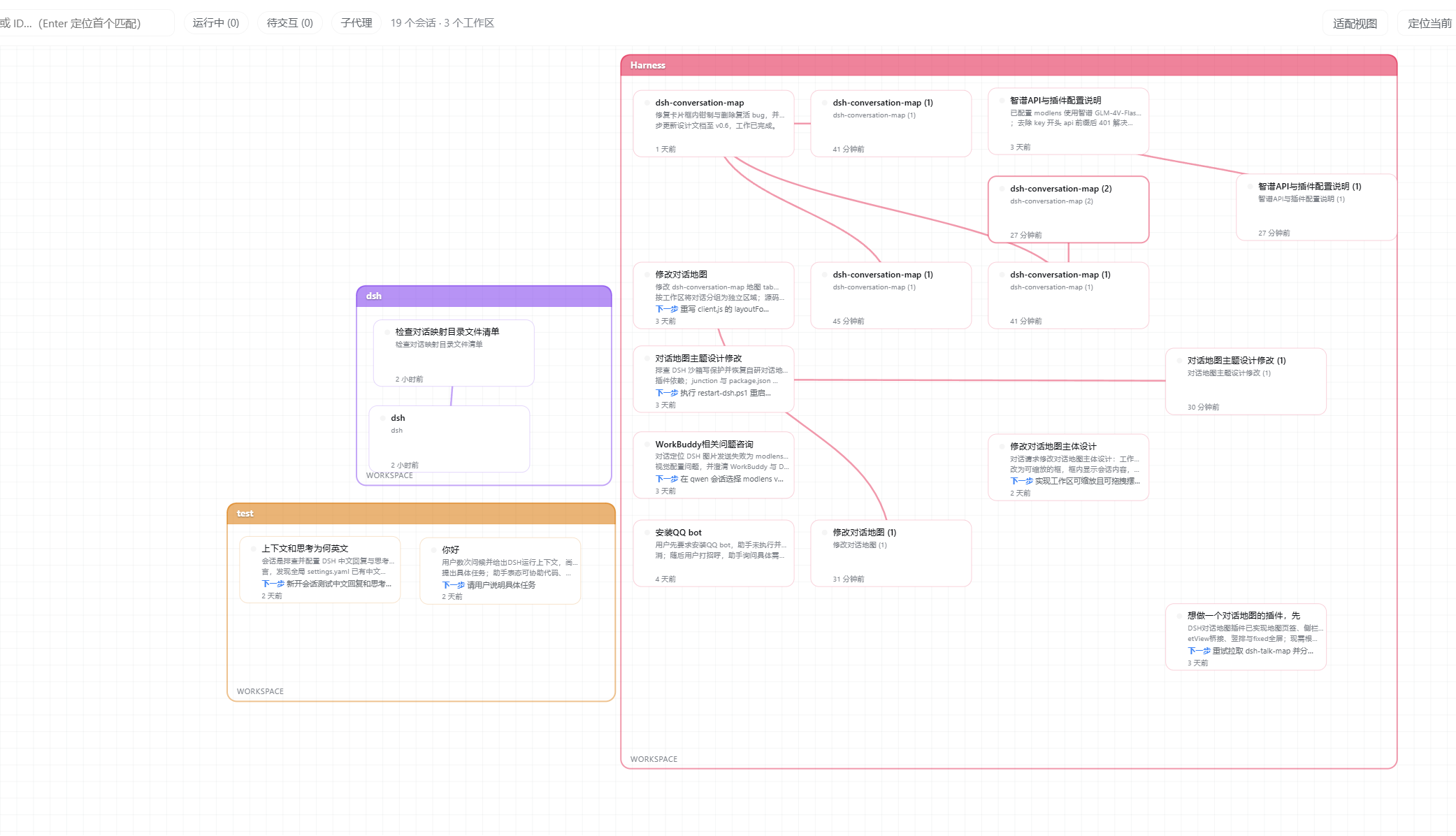

A live conversation map for DeepSeek Harness web: every session in the workspace as a real-time tree — subagent lineage, running state, and one-click navigation.

v0.2.0 — tree auto-layout, workspace theme colors, grid-paper canvas

Features

• Tree auto-layout: sessions are arranged by parent/child relation — parents on the left column, forked sub-sessions indented one column to the right, siblings stacked vertically. The lineage is obvious at a glance.
• Edge avoidance: connectors sample the real bezier curve; cards crossed by a line are automatically moved to the nearest free slot inside their workspace frame.
• Workspace theme colors: frame borders, session card borders (selected vs idle depth), and parent-child connectors all inherit the workspace's theme color.
• Grid-paper canvas: the background is a zoom/pan-following grid; workspaces are transparent hand-drawn-style boxes (no shadow).
• Auto-growth: when a new/forked session arrives, the workspace frame grows to fit — cards never overlap and never overflow the frame.
• Live status: running / pending / idle dots.
• One-click navigation: double-click a card to jump to that session.
• Zoomable canvas: pan / zoom / drag workspace frames, positions persisted to localStorage.

Install

dsh plugins add dsh-conversation-map

Then restart dsh web. A "对话地图" (Conversation Map) entry appears at the bottom of the left sidebar.

Usage

• Click "对话地图" in the bottom-left to open the map tab
• Double-click a session card to jump to that session
• Forking: ask the agent to spawn a subagent, or hover a message and click the branch icon — the map auto-draws the parent-child edge and tree branch
• Drag a workspace's header bar to move it; drag its corner to resize
• Click a card to view its summary / key findings / next step

Changelog

v0.2.0

• Tree auto-layout (groupTree hierarchy): parents left, children indented right, same-depth stacked, auto-avoid overlap
• Edge avoidance: bezier sampling + nearest free slot evacuation inside the frame (with frame auto-growth)
• Workspace theme color threading: borders/cards/edges inherit, selected-state depth distinction
• Card text truncated by visual width (CJK never overflows)
• Removed session-count badge, card refresh button, selected "current" badge
• Frame border color stays consistent while dragging
• Grid-paper background + transparent sketchy workspace boxes

v0.1.0

• First release: workspace-grouped real-time session tree
• Subagent lineage edges, running-state dots, double-click navigation
• Resizable / draggable workspace frames with persisted positions

License

MIT
